Longitudinal Profile

Description

The Longitudinal profile tool is part of the utilities available for wastewater projects (UD). It allows you to visualize an elevation chart along a selected line (pipe segment).

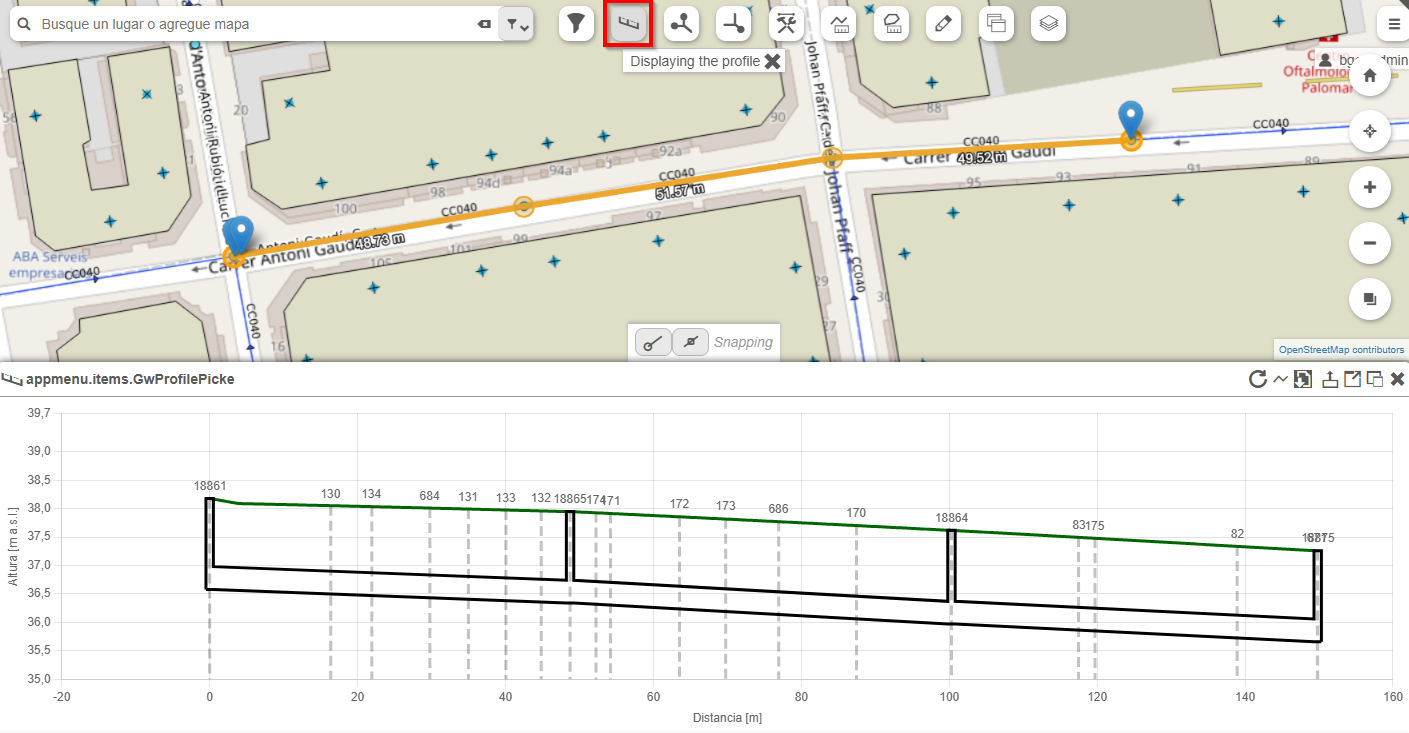

../../../../_images/perfil_longitudinal.png — Fig. 20 Longitudinal Profile.

How to use

To use the Longitudinal profile tool, the user must first select the icon tool and then mark an initial node and a final node on the network. Based on that selection, the application generates the corresponding longitudinal profile for the defined segment.
